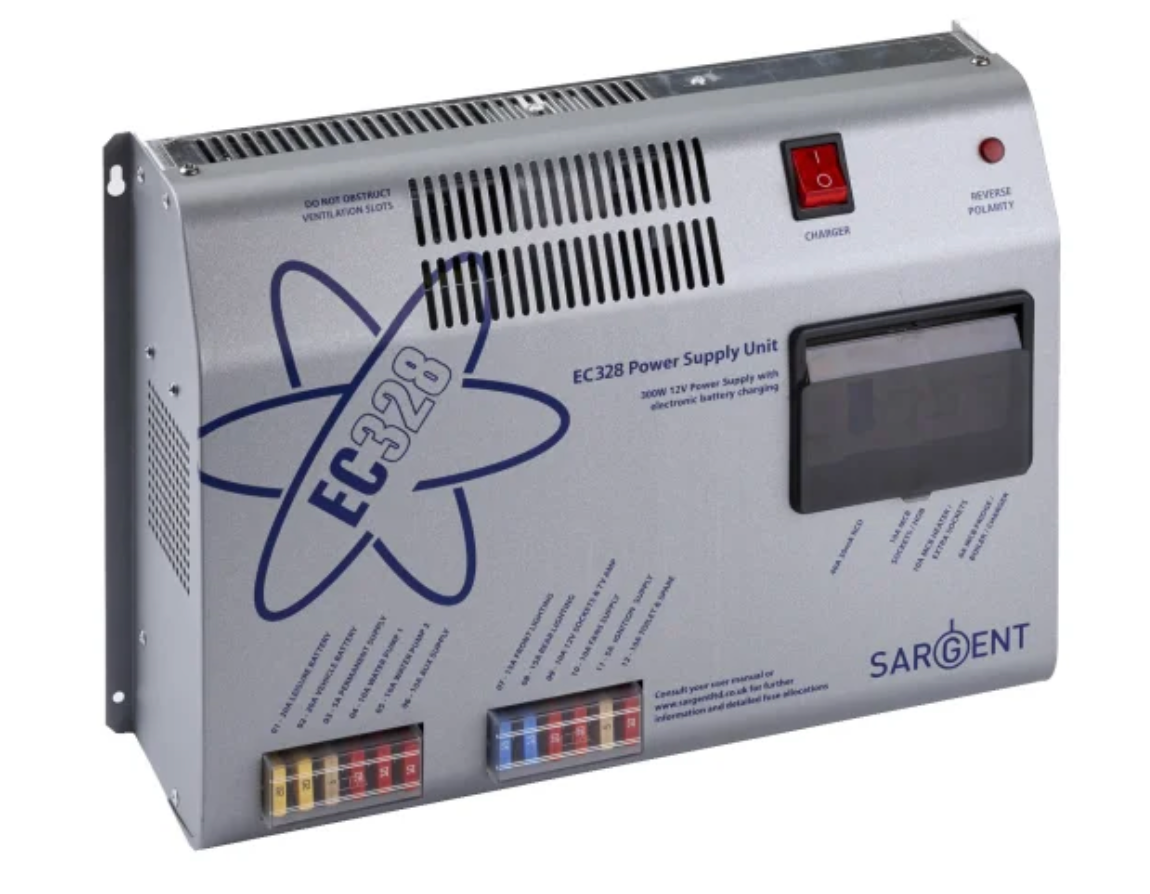

SARGENT EC328 POWER SUPPLY UNIT

The EC328 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit can be used in conjunction with a Control Panel, Water Level Sensors and Solar Panel to provide a complete Power Control System.

• RCD for earth leakage protection of 230V mains supply

• MCB's for overload protection of 230V mains supply

• Blade fuses for protection of 12V circuits

• Integrated Battery Charger (up to 300 watts)

• Integrated Solar Panel Regulator (up to 120 watts)

• Reverse polarity indicator (for 230V mains supply)

• Connections for Control Panel, Water Level Sensors, Temperature Sensor

Input: 230v 0 to 16amps + / - 10%

Output:  230v RCD protected, 3 x MCB outputs of 10, 10 and 6a via 2 x 9 way connectors

Input: 12v 2 x 20a battery inputs via a single 6-way connector

Solar Input: 1 x Dedicated solar panel input (20 to 120W panel) via a 4-way connector

Output: 12v 25a total output via 4 x 16A switched channels protected by 12 fused outputs via a 15 way connector

Integrated Charger: Input 220-240 Volts AC +/- 10%, Frequency 50 Hz +/- 6%, Current 3A max. DC Output 13.6 to 14.4 Volts nominal, Current 25 Amps max (300 Watts)

IP rating: IP31

Operating temperature: 0 to 35°C - PSU case temperature with full load 65°C Max. Automatic shutdown and restart if overheated / overloaded

Dimensions (HxWxD): 240 x 370 x 110mm Fixing centres 210 x 360mm

Weight 3.8Kg
