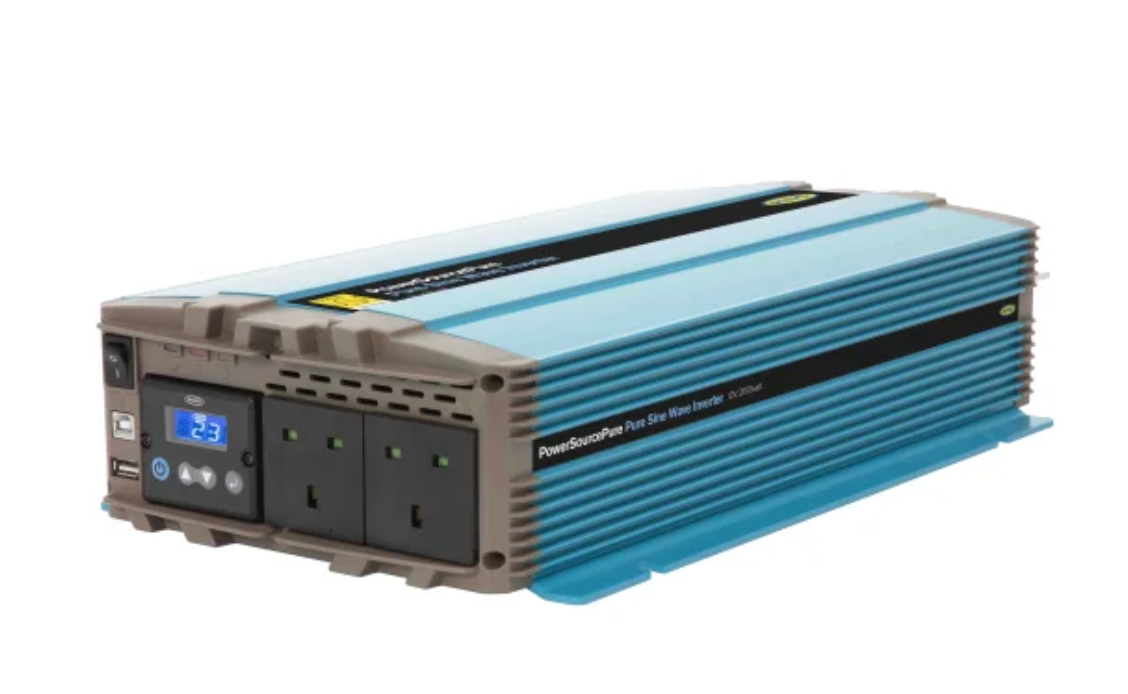

RING 2000W PURE SINE WAVE INVERTER NEW

Professional 2000 watt pure sine wave inverter, converts 12 volt battery power into useful 230 volt AC mains power - ideal for remote applications such as service vehicles. Pure sine wave inverters provide an extremely pure output, which replicates the normal domestic mains supply. This makes them suitable for powering products not compatible with modified sine wave inverters, such as certain power tools, coffee machines, laser printers and sensitive electronics such as laptops and audio/visual equipment.

Highly efficient, running at 90% efficiency at 75% load, and with minimal footprint to reduce installation space. Includes a power saving mode to reduce battery drain when not in use. All models are fully protected against overload, over temperature and low/high voltages.

An additional LCD screen is also available, to provide power consumption information – essential for effective power management when working remotely. Also available is the RINVCM Current Sensor, which monitors the inverter's battery current, allowing indication of time remaining before battery is flat to help improve power management.

PowerSourcePure inverters are E-Marked and tested and certified to the relevant EMC and LVD Directives.

• 2000W pure sine wave inverter

• Operating mode and fault indicators

• Power saving mode reduces standby power

• Up to 12 hours continuous use

• Compact heavy duty extruded casing

• USB charging socket for mobile devices

• Optional multi-function LCD frame (RINVFRM)

• Optional battery sensor module (RINVCM)

• Fully protected against overload, over temperature and low/high voltage

• Suitable for 12V vehicles

Dimensions (HxWxD): 98 x 248 x 464mm

Weight (kg): 7.17

Voltage: 12V DC Input - 230V AC Output

Wattage: 2000W

E regulation: 10-EMC

Continuous power rating (up to 12hrs): 2000W

Peak power rating: 4000W (upto 200ms)

Output voltage: Adjustable 200/220/230/240V  +/- 10%

Output frequency: Adjustable 50/60Hz

Output waveform: Pure Sine Wave

Input voltage range: 9.5 – 16.5V (12V nom)

Input current: 196A (max)

Efficiency at 75% load: 90%

No load current draw: <2A

Power saving mode: Yes

Power saving current: 0.2A

Low battery alarm sounds: 10 – 11.5V  +/- 0.5V

Low battery shut down: 9.5 - 11V +/- 0.5V

Thermal protection: 60°C +/- 10°C

USB: 2.1A

Display panel port: Yes

Current sensor port: Yes
